How to change gearbox mount?

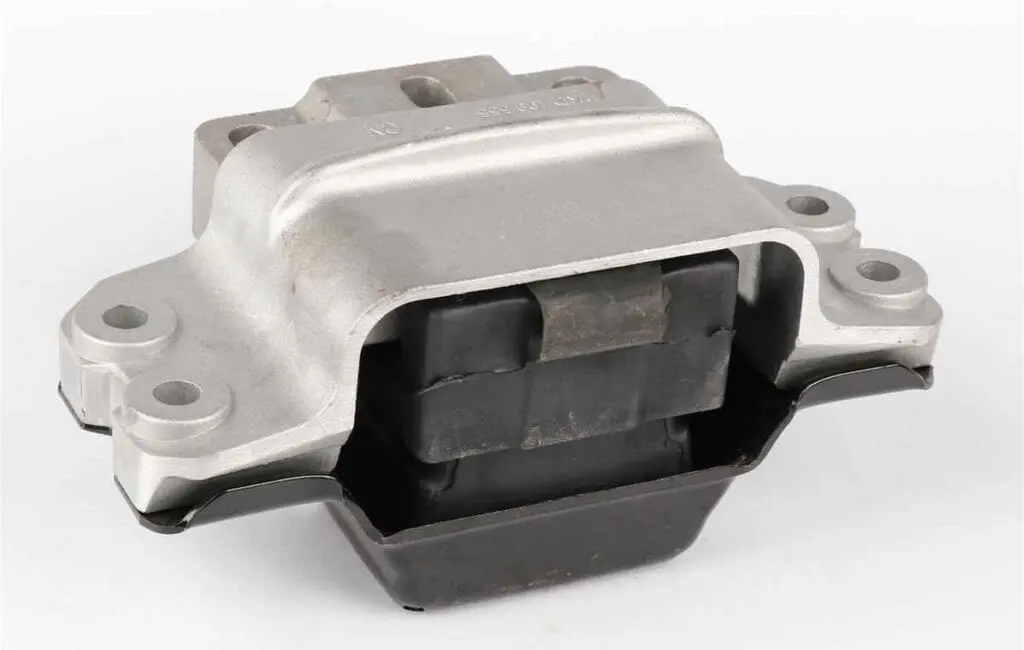

The main task of the gearbox cushions is to provide stability to it, absorb and reduce vibrations that occur during engine operation.

Depending on the design of the car, the pillows can be of different designs, but in general, these consumables have a simple structure, usually consisting of two metal parts, between which there is material (usually rubber) that is resistant to wear.

These fasteners are mounted on the gearbox and car frame and are subject to very high loads and various weather conditions, so they wear out over time, deteriorate and require timely replacement.

When to change gearbox mount?

Manufacturers indicate about 100 km. the life of the pillow, but the truth is that how long they will be truly effective depends on many factors. During the operation of the pillows, as we have already noted, they withstand very large loads, are exposed to various temperature effects, and all this extremely negatively affects their effectiveness.

Over time, the metal begins to wear out, microcracks appear, and the seal loses its elasticity, collapses, and this leads to the need to replace the transmission gaskets.

Pillows to be repaired?

The short answer is no. In the event of a malfunction, the transmission mountings must be removed and replaced with new ones. But do not be afraid, as these supplies are available at relatively low prices (depending on the model of the car for which they are designed), and replacing them is quite simple and quick.

Symptoms indicating pillow replacement?

The good news is that if there is a problem with these supplies, this is immediately felt. One of the clearest signs that it's time to take a look at the condition of the gearbox mountings:

• if you start to hear strange sounds, such as creaks, clicks or bumps in front of the car while driving or stopping;
• if you feel bumps in the front when driving on rough terrain or if your gear lever suddenly starts to behave atypically when you try to shift gears;
• if the vibrations in the cabin are amplified and you are no longer comfortable while traveling.

How to check the condition of gearbox mountings?

The first thing you can do is inspect the pillows visually. To do this, lift the car on a jack or a lift and inspect the cushions for cracks, tears or hardening of the rubber.

Checking the mounting bolts will also not be superfluous. (If the problem is in the bolts, you will recognize this by a sagging gearbox).

It would be nice to try moving the swab with your hand. Sometimes everything may look good from the outside, but if you try to twitch it with your hand and feel that something is moving inside the pillow, this indicates that you need to replace it.

How to change gearbox mount?

The process of replacing these consumables is not difficult, and if you have any knowledge in this area, you will do everything yourself. However, we are obliged to tell you if you are not sure what exactly you are doing - it is worth contacting the service center.

If you are testing yourself as a mechanic, the first thing you need to do is buy the right pillow model. This is very important, because cars of different brands and models have overlays of different designs, and not every model is suitable for your car.

If you cannot choose the model and design of the pillows you need, contact a mechanic or consult a specialist in the store where you came.

Once you have the necessary cushion, you need to prepare your workplace and find a way to raise the car to a comfortable working height and prepare the necessary set of tools (you will find them in the car's instruction manual). You will also need safety racks for the gearbox and engine.

Key Steps When Changing A Gearbox Cushion

1. Lift the car on a lift, jack.
2. Install engine mounts and gearbox to lighten weight and prevent them from falling when removing the pillows.
3. Find the defective cushion, carefully inspect the condition of the bolts, and if they are too dirty or rusty, spray them with detergent and leave them with detergent for a few minutes. Then try unscrewing the bolts with a suitable tool.
4. Using the ratchet mechanism and wrench, remove the axles holding the bellows, and then remove the entire bellows.
5. Thoroughly clean the area where the pillow was located to remove accumulated dirt.

6. Insert the new pillow in the reverse order. Install the bolts one at a time and make sure they are tight. Be careful not to over-tighten, as this will cause you a lot of problems, and you may need to replace the consumables again several weeks after the first replacement.
7. If everything is in order, remove the car from the lift or jack and check. Do a few laps around the neighborhood. If you change the pillow correctly, you will not hear any strange noises or vibrations.

Why is a pillow so important for a car?

At first glance, the pillows look like rather unsightly consumables that do not play a significant role in the operation of the car. However, if they are not there or they are worn out and you hit the road - be sure that this will backfire on you.

Because without pillows to support the gearbox, it cannot be firmly fixed, and it will be extremely difficult for you while riding. In addition, if you do not have these consumables, you will be strongly, clearly and completely unpleasant to feel all the vibrations that come from the engine during its operation.

The truth is, gearbox mountings are just as important as engine mountings, and without them, your vehicle simply won’t work properly.

Thanks to their efficient operation, the gearbox can operate normally. The transmission is one of the most important elements in a car.

How to find the pillows you need?

Wherever you go to the auto parts store or the car market, you will find many options for pillows, and it can be quite simple to choose the right one, especially if you are going to buy such supplies for the first time.

To make it faster and easier, you just need to read the description of the brand of the car you are driving and find the design of the pillow you need. If you do not find such information, it is recommended to consult with a mechanic who will provide you with additional information and tell you which model of pillows is suitable for your car.

Then all you have to do is choose a store and buy a gearbox pad. Just be careful when buying and do not be fooled by the low price of supplies that some stores offer. When buying pads or other parts for your car, we advise you to buy only in stores in which you are absolutely sure that offer original, high-quality consumables with a proven origin.

What is a gearbox and what are its main functions?

The gearbox is as important a part of a car’s transmission as the engine. The main function of the gearbox is to convert torque from the engine and transfer it to the wheels of the car.

In other words, a gearbox is a type of power plant that converts engine power into a controllable energy source. It acts as an intermediary between the engine and the wheels of the car and converts the high power generated by the engine into torque, transmitting it to the axles of the wheels, which, in turn, rotate them.

The power generated by the engine is high and too variable, and the wheels spin at a lower speed. Without a transmission, driving would be impossible, because even if you wanted to, you would not be able to control the speed or stop completely if necessary.

The gearbox is capable of supporting both the speed of your engine and the speed of the wheels at optimal speeds.

Currently, there are several main types of gearboxes, but only two of them are actively used in cars - manual and automatic.

A manual transmission is the oldest type of transmission that is still in active use today. In this type of transmission, the engine speed is input through the input shaft. This means that the output speed (the speed that leaves the gearbox) is the product of the various gear ratios. A feature of manual transmissions is that they usually have one pair of gears for each speed. The mechanisms are driven by a control lever located to the right of the driver.

Automatic transmissions are essentially a type of automatic shift. Instead of shifting gears with a friction clutch, as in a manual gearbox, automatic transmissions use a different type of gear shifting. This is done using special elements that use oil pressure (oil pump) to automatically switch the engine speed to the selected gear. Thus, there is no need to disengage the clutch to shift gears.

Automatic transmissions are electronically controlled, allowing the driver to easily shift gears.

Questions and answers:

How to check the transmission mountings? To do this, you need to put the car on an overpass or lift it on a lift. After making an effort to the checkpoint, you need to try to pull it up / down and to the sides. A worn out pillow will move inside as well.

When to change the pillow box? On average, the resource of the gearbox support is about 100 kilometers, but this depends on the operating conditions (what reagents the road is sprinkled with, the quality of the road surface, etc.)
